Application:
. Air conditioning
. Refrigerator, Freezer
. Dehumidifier
Accessories (customer customized requirements)
. In-line terminal
. Connector
. Tubes (fiberglass, heat shrink, teflon)
. Cable ties
Specification parameters:
Sensor series | CWF1 series |
Operating temperature range | -40 ℃ to 105℃ |
Temperature sensing element | Ukesa MF51 NTC Thermistor |
Resistance specifications | 10KH4100 (R25=10K ± 3%, B25/50=4100K ± 3%) |
headPackaging form | Epoxy resin encapsulation |
Common wire | UL2651 |
Dielectric Strength | 2000VAC, 60S, 0.5mA(Regular, optional) |
Thermal time constant | ≤15s（In a constant temperature oil bath) |
Dissipation coefficient | ≥2.2mW/℃ (25 ℃,In still air) |
Customized services
The above accessories
Shell size, shape, material
Line type and length
The resistance, B value, and accuracy of NTC thermistors can be customized

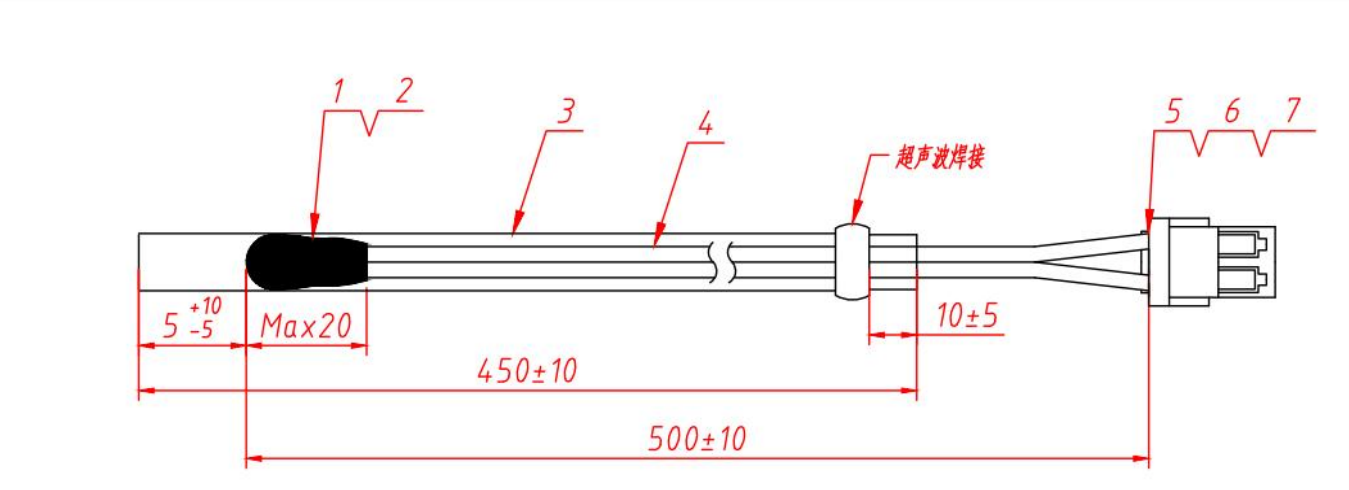

Typical style reference drawings
