Temp. Sensor for Washing Machine
  • Temp. Sensor for Washing Machine
  • Temp. Sensor for Washing Machine
Temp. Sensor for Washing Machine

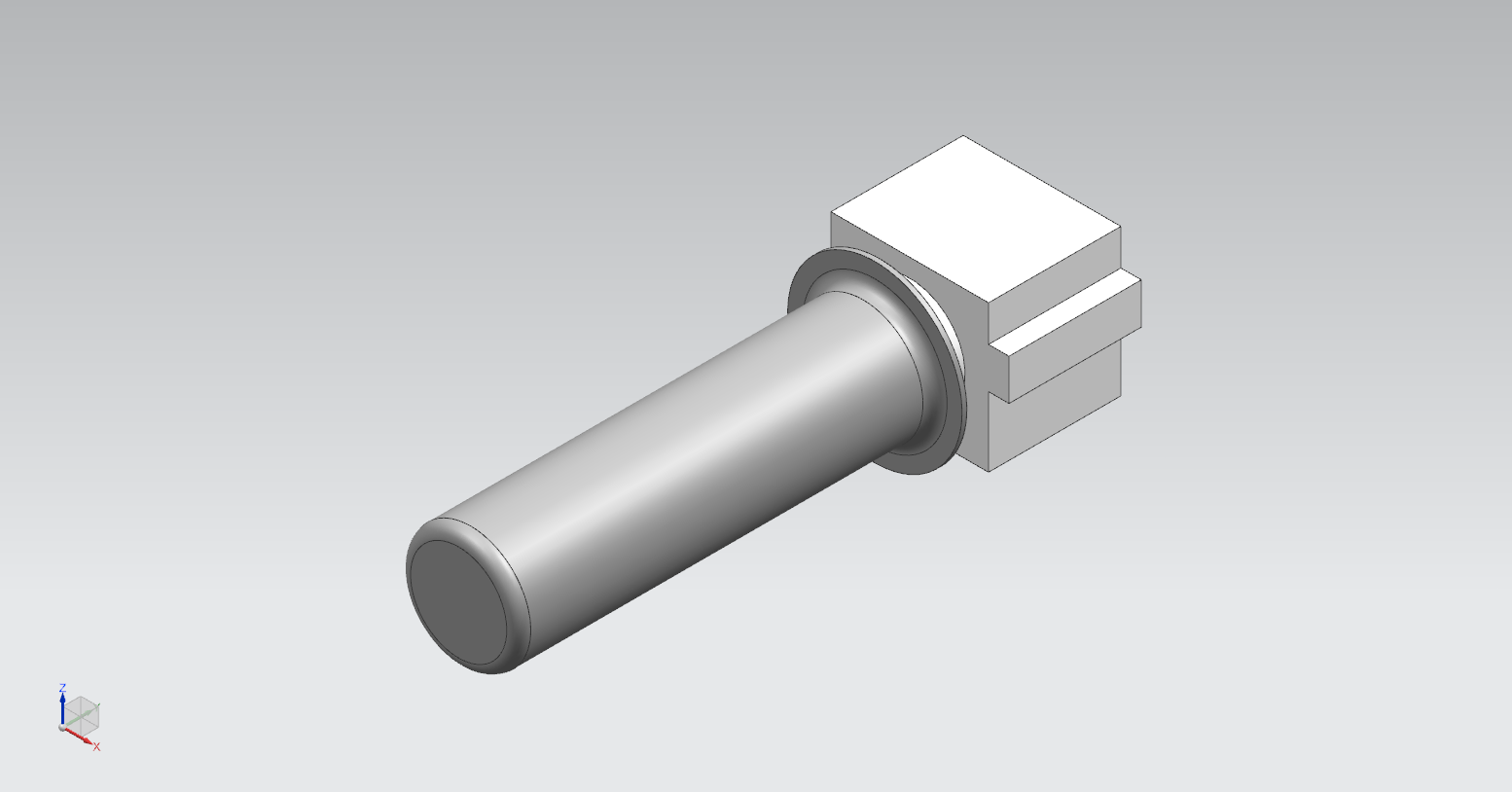

The sensor of washing machine belongs to Ukesa CWF2 series, which is a sensor element made of semiconductor material NTC thermistor and packaged with metal shell for temperature sensing head. The application range of this series of sensors is - 40 ℃ to 130 ℃. The main components are stainless steel shells, injection molded parts, etc.

Product details

Application

. Washing machine


Accessories (customized requirements)

. Contact terminal
. Injection molded parts


Specifications

Sensor family

CWF2 series metal shell encapsulation type

Operating temperature range

-40 ℃ to 130 ℃ (limited by temperature sensing elements, wire rods, etc.)

Type of temperature sensing element

NTC thermistor (Ukesa MF51 series)

Resistance specification

1.024KG3966,1.204KG3941

Head packaging form

Metal enclosed type

Shell material

SUS304

Head package size

Customized size and shape

Dielectric Strength

1500VAC, 3S, 0.5mA (conventional, optional)

Thermal time constant

≤ 15s (in thermostatic oil bath)

Dissipation coefficient

≥ 2.5mW/℃ (25 ℃, in still air)

Rated power

150mW (25 ℃, in still air)


Customized service

. Above accessories
. Shell size, shape and material
. Line type, line length
. The resistance value, B value and precision of NTC thermistor can be customized

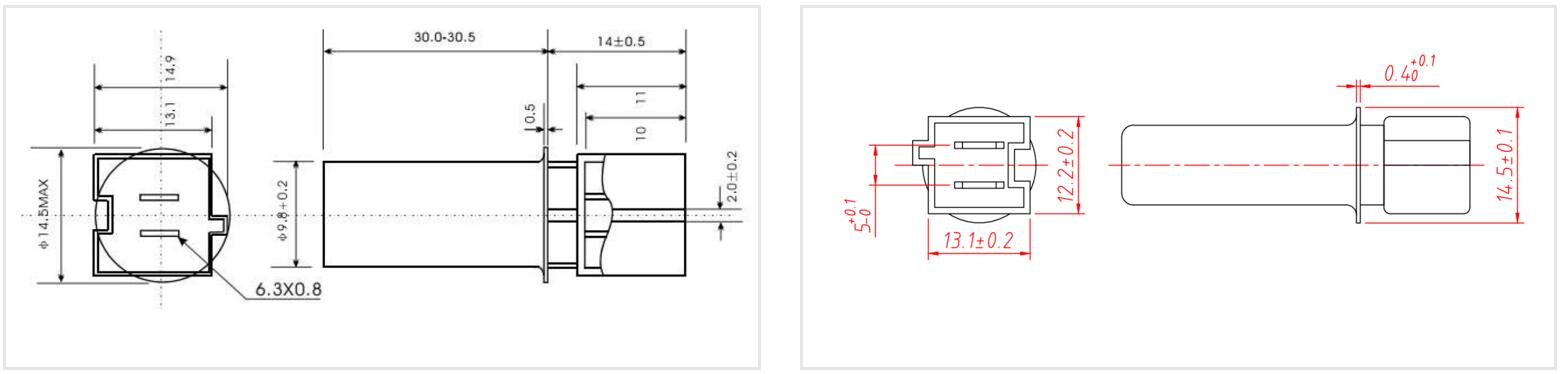

Typical style reference drawing
